The PEACEMAKER AC/Heat pump tester with options

🔧 Peacemaker — RV Rooftop AC & Heat Pump Tester

Built to protect. Designed to empower.

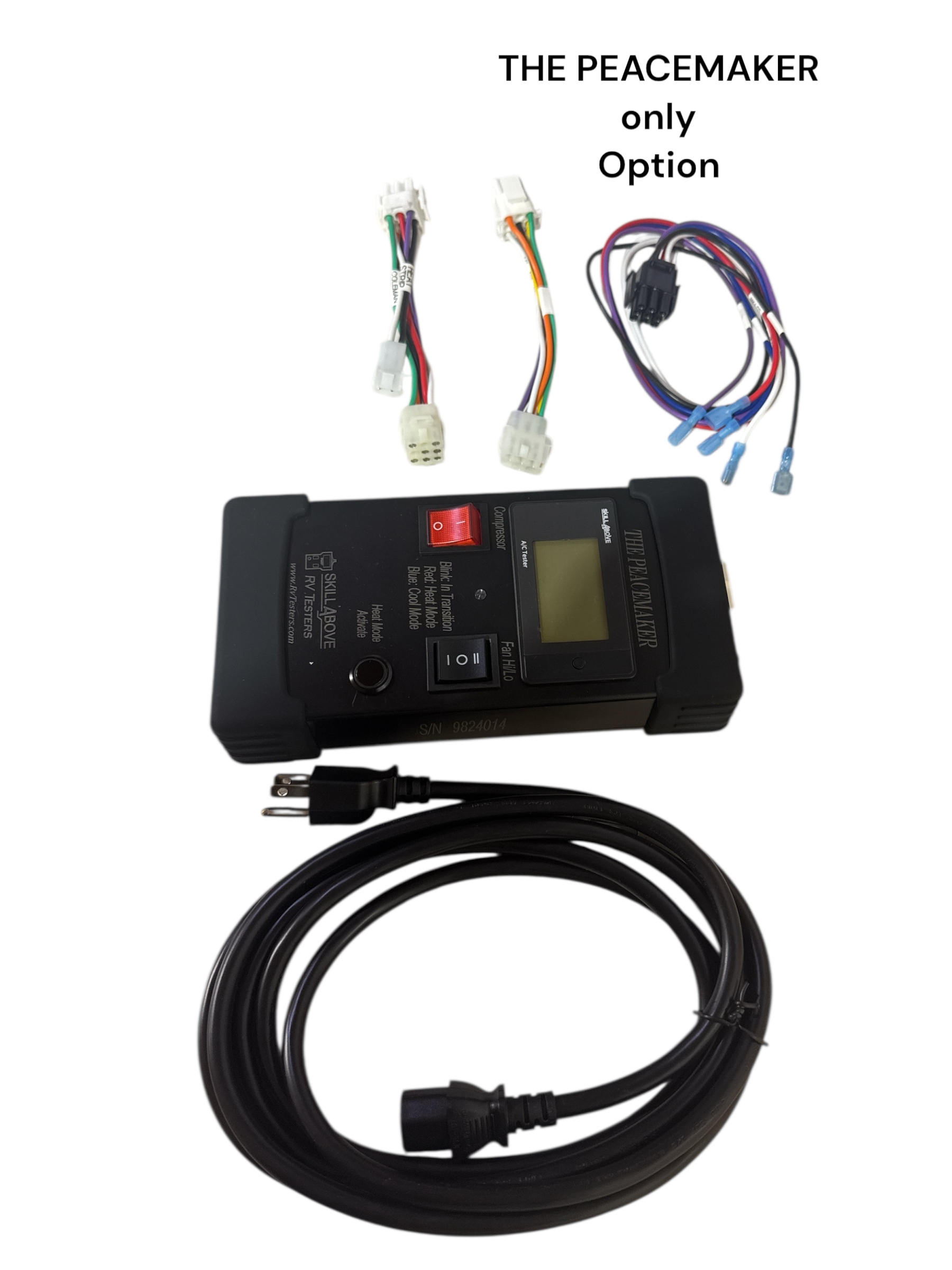

✅ Base Configuration Includes:

•  Peacemaker Tester Unit
• Four OEM-compatible adapters
• 10’ detachable power cord

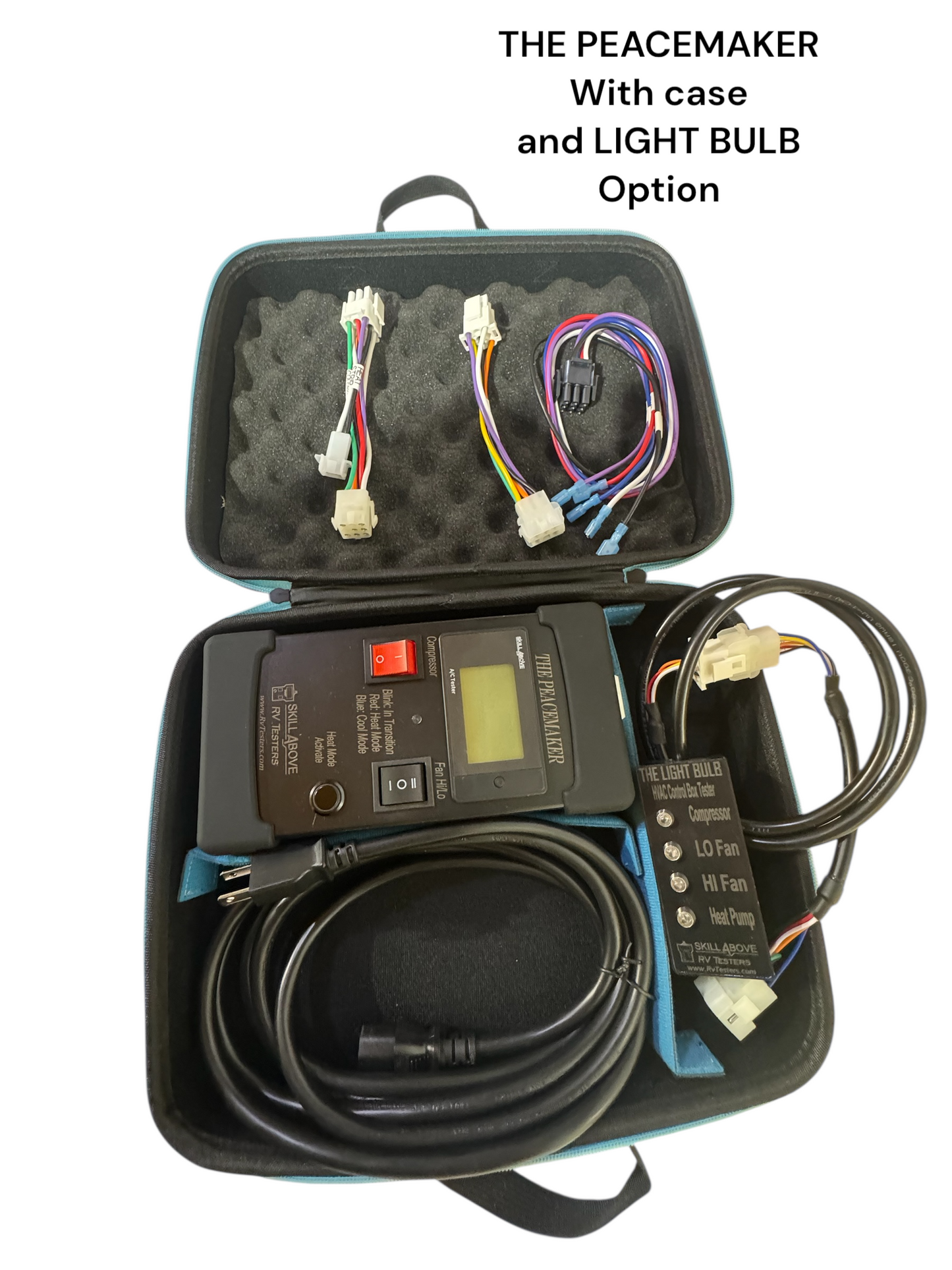

Optional Add-Ons:

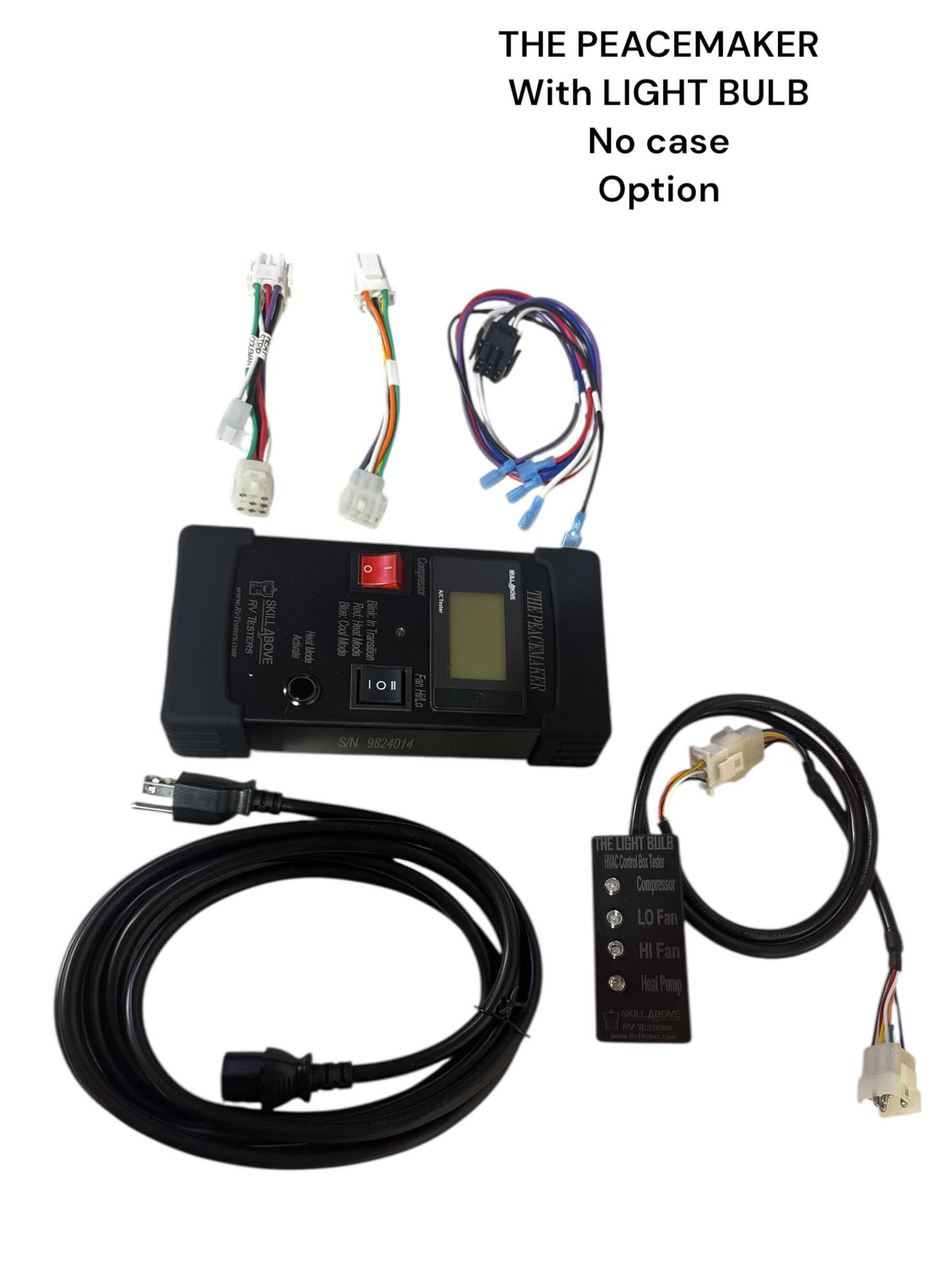

• 💡 Lightbulb Control Box Tester

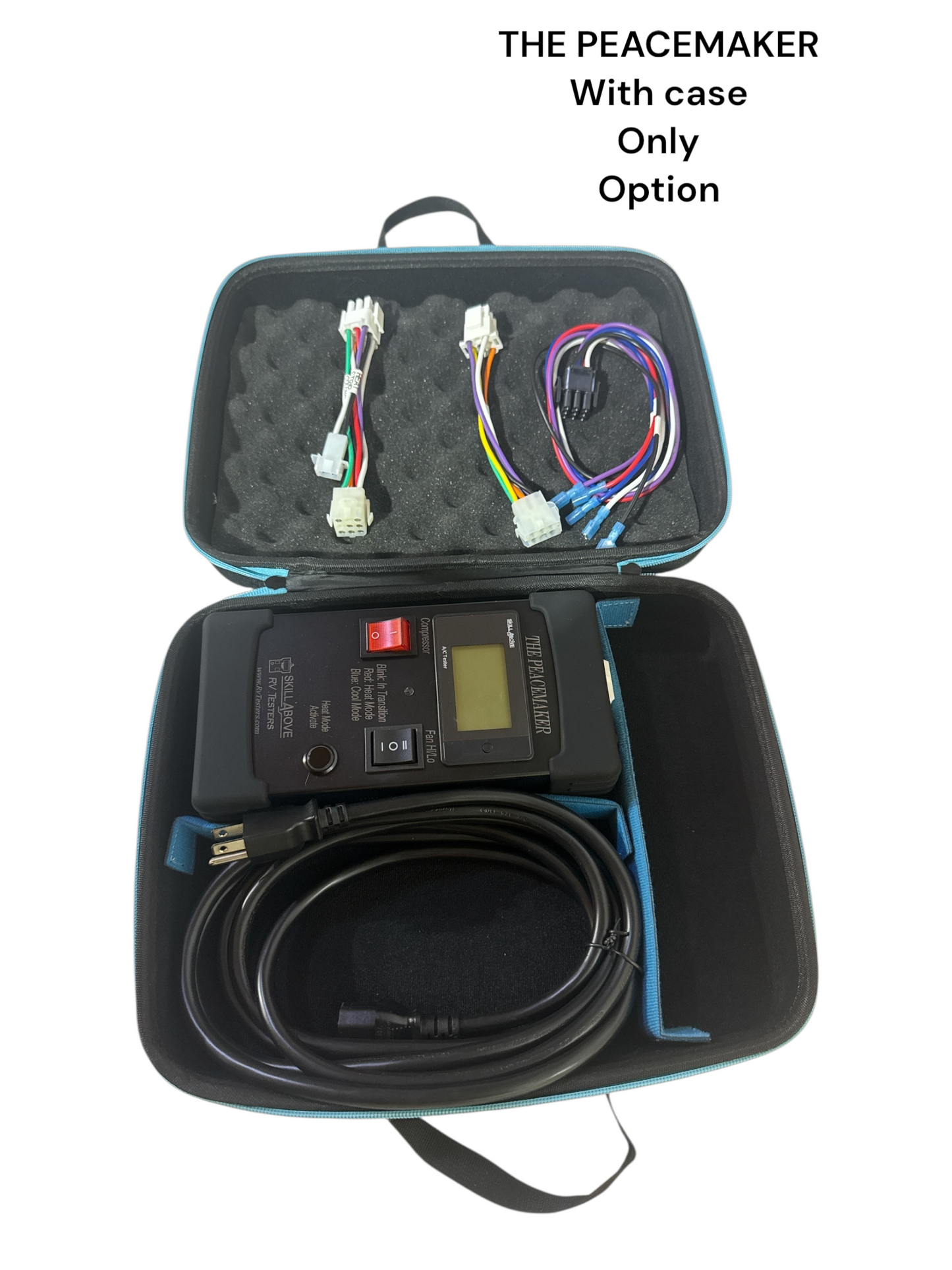

• 🧳 Custom-Fit Carrying Case

🧠 Smart, Safe, and Field-Ready

The Peacemaker is a next-generation RV rooftop AC & heat pump tester, built to simplify diagnostics and speed up service calls without compromising safety. Whether you’re running a compressor, fan motor, heat pump, or heat strip, Peacemaker gives you full control and instant feedback—without crawling on the roof or opening up sealed housings.

🔍 Key Features

✅ 90-Minute Auto Timeout

• Prevents overheating or misuse by shutting down automatically after 90 minutes.
• Red/blue flashing indicators signal timeout status.

✅ Built-in Heat Pump Delay Logic

• Automatically shuts down the system when switching to heat mode.
• Waits for system equalization and opens the reversing valve before safely restarting.
• Prevents compressor damage due to improper mode switching.

✅ Relay-Controlled Safety Brain

• Processor-driven smart relays ensure safe, accurate signal switching.
• Prevents signal conflicts and improper operation.

✅ Digital Diagnostics

• Real-time amperage draw and voltage display.
• Visual blue/red indicators for cooling and heating modes.

✅ Works on Heat Strip & Heat Pump Systems

• Compatible with standard rooftop units using plug-in or pigtail-style connections.

🔌 Included Adapters

1. Dometic® / Furrion / GE / Advent – 6-pin
2. Coleman® – 9-pin w/ 2-pin heat strip
3. 5-Wire Labeled Pigtail – For older or direct-wired units (e.g. Dometic® Penguin II)
4.  GE R32 units for GE units with the 3&4 pin plug.
5. ADVENT R32 Adapter

⚠️ Compatible with rooftop ACs prior to R-410A and R-32 refrigerants.

⚙️ How It Works

• Upon powering on, the tester boots up with a short delay to allow for internal equalization.
• Use cooling mode (blue light) or heat mode (red light) with fan control.
• When switching to heat mode, the unit handles timing delays automatically:

• 16-second pause → reversing valve opens
• 16-second delay → compressor restarts in heat mode
• If heat mode is engaged on power-up, a fast red flash appears. Simply reset to boot in cooling mode.

🧰 Optional Accessories (Add at Checkout):

• Lightbulb – Test rooftop control boxes at ground level.
• Carrying Case – Heavy-duty, foam-padded protection for your Peacemaker in the field.

⚡ Test Smarter. Protect Your Gear.

Peacemaker isn’t just a tester—it’s peace of mind.

Stop guessing. Start verifying.
