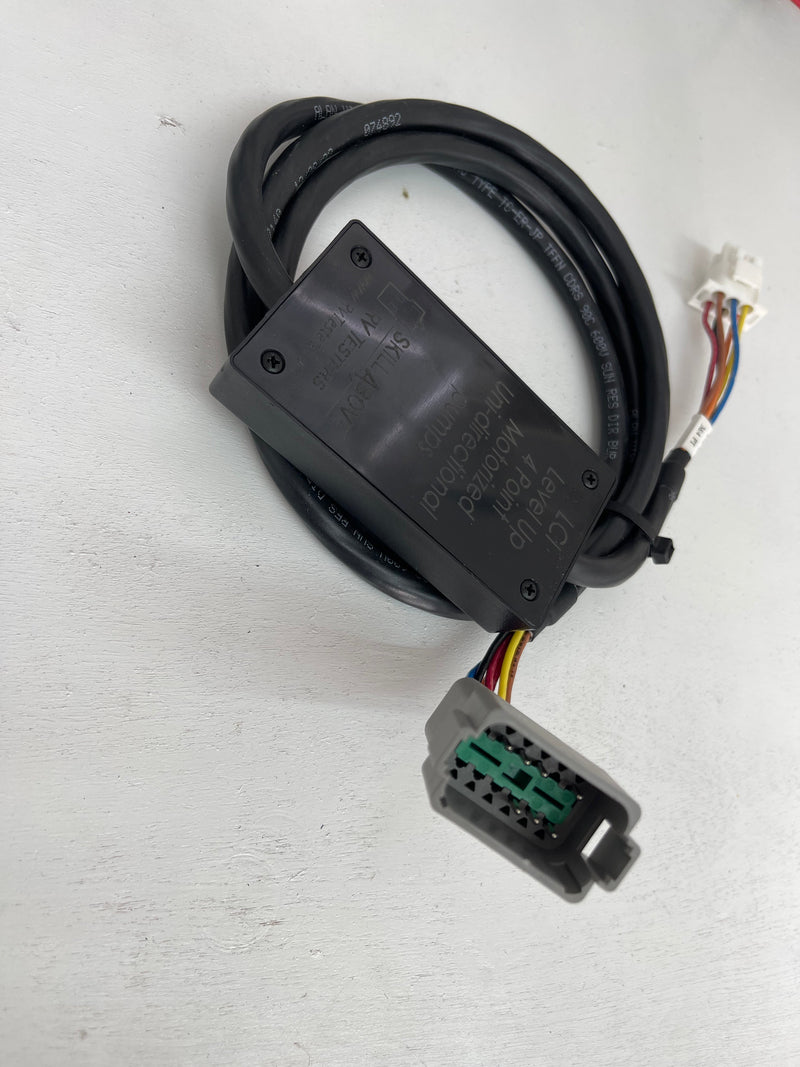

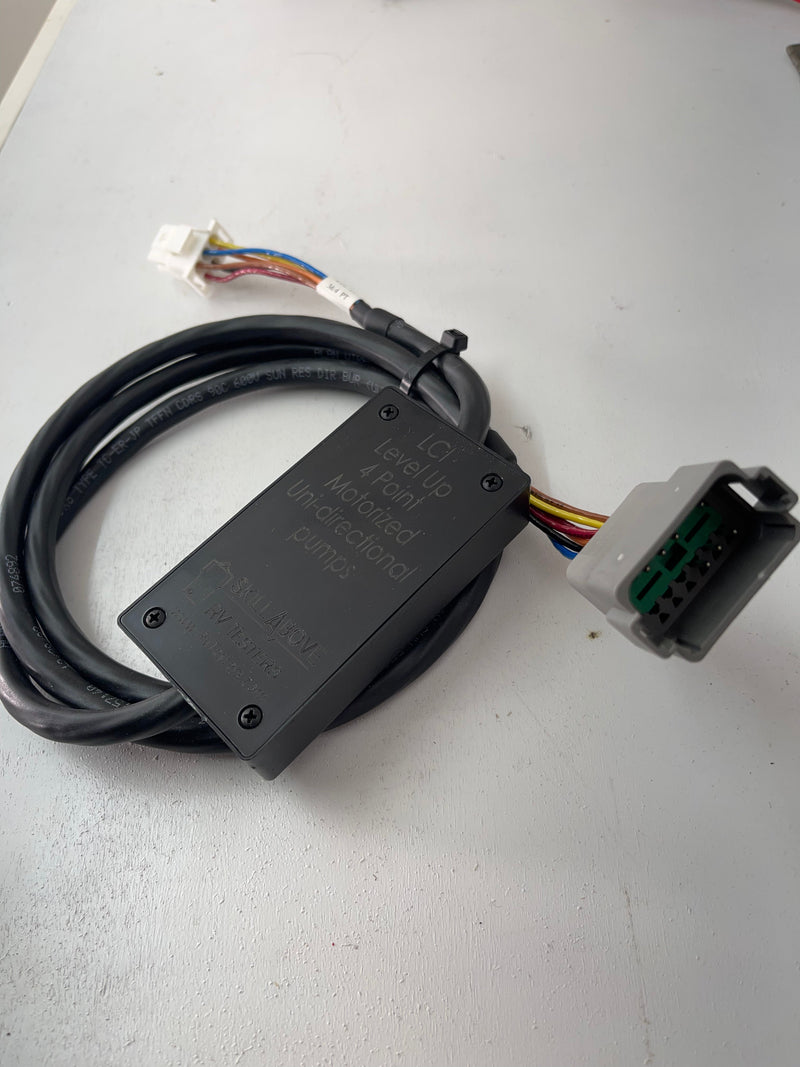

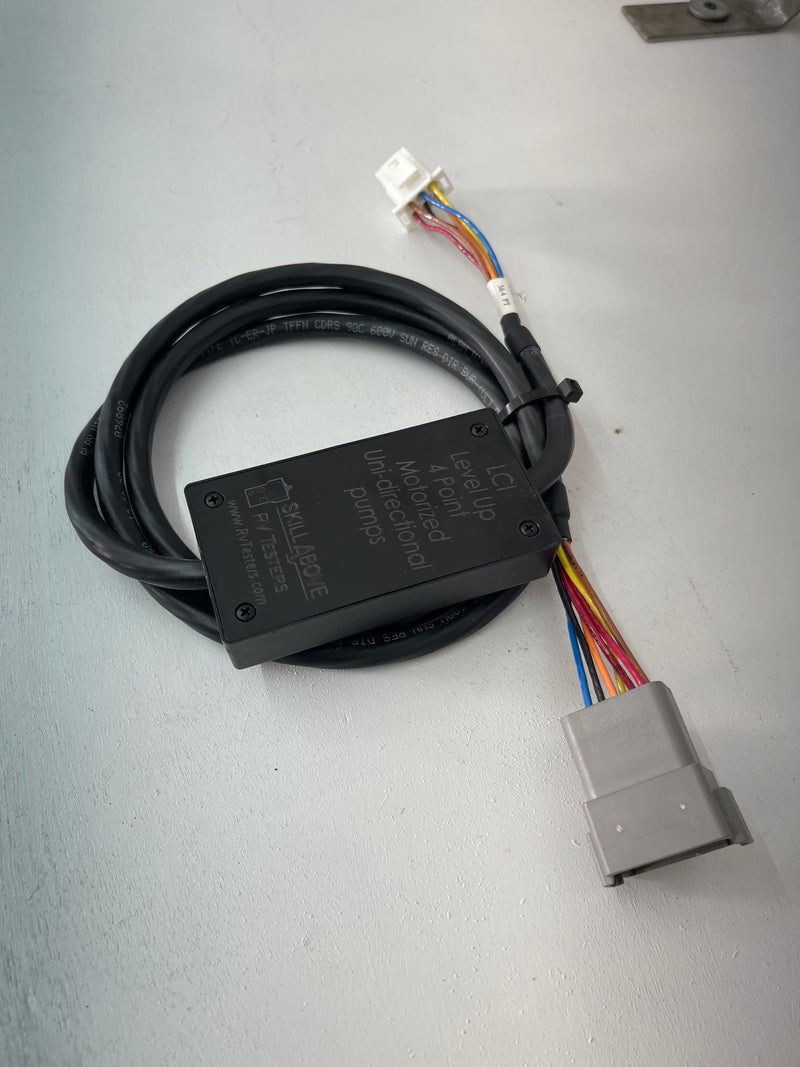

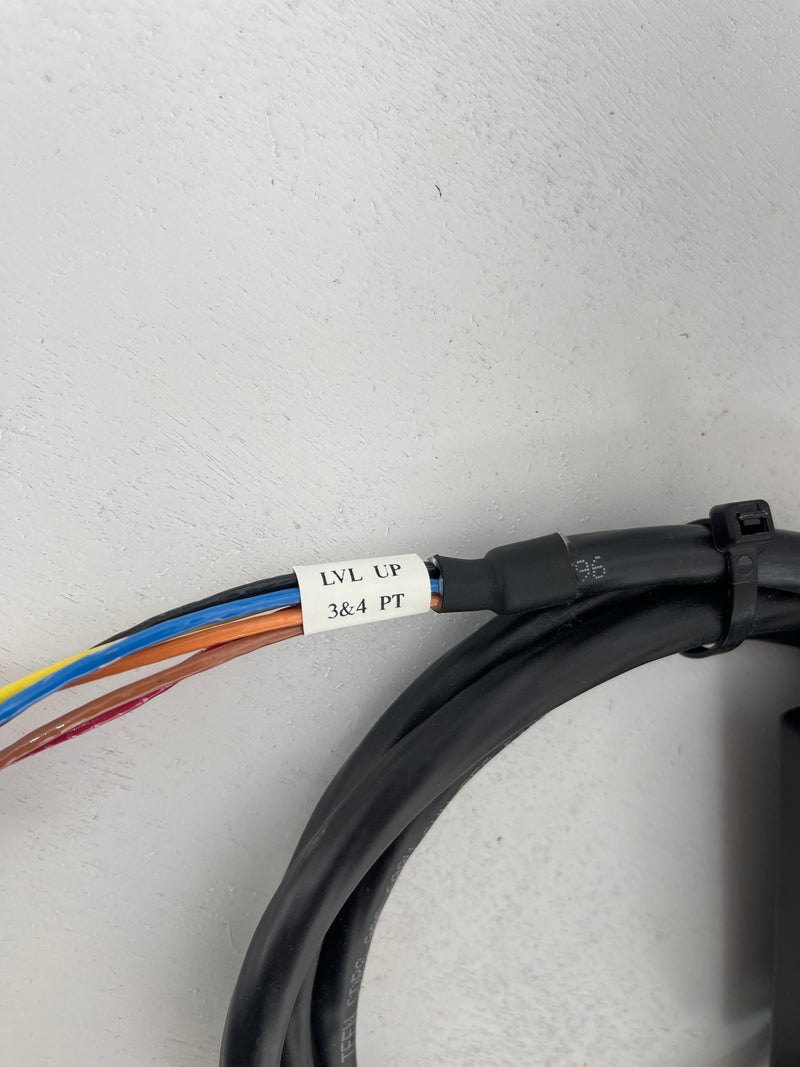

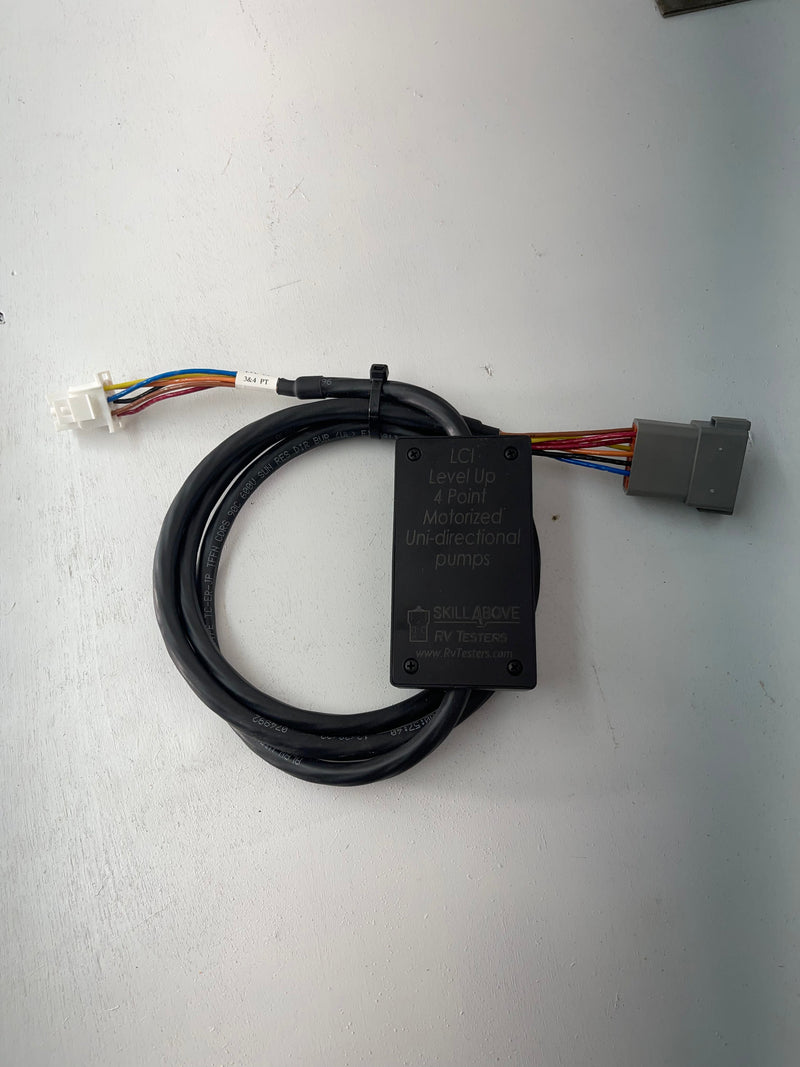

Level up motor home Rescue Tech adapter (grey plug at the hydraulic pump)

This adapter is designed to allow you to attach directly to LCI 3 and 4 valve leveling systems harness that is connected at the pump assembly. This adapter allows you to run uni-directional setups with the Rescue Tech.

to retract jacks:

1. plug adapter into AUX port on Rescue Tech

2. At pump assembly locate grey 12 pin connector.

3. Unplug pump harness connector from coach.

4. Plug adapter into pump harness.

5. Connect Rescue Tech to the app on your smart phone.

6. Open the leveling system tab.

7. Press retract front then retract rear.

This is for motorized RV’s only! Not for use on towables.
