YouTube channel showing CODDIWOMPLE in use:
https://youtube.com/channel/UCaIUSkIltVQHB6MjJKmET1A

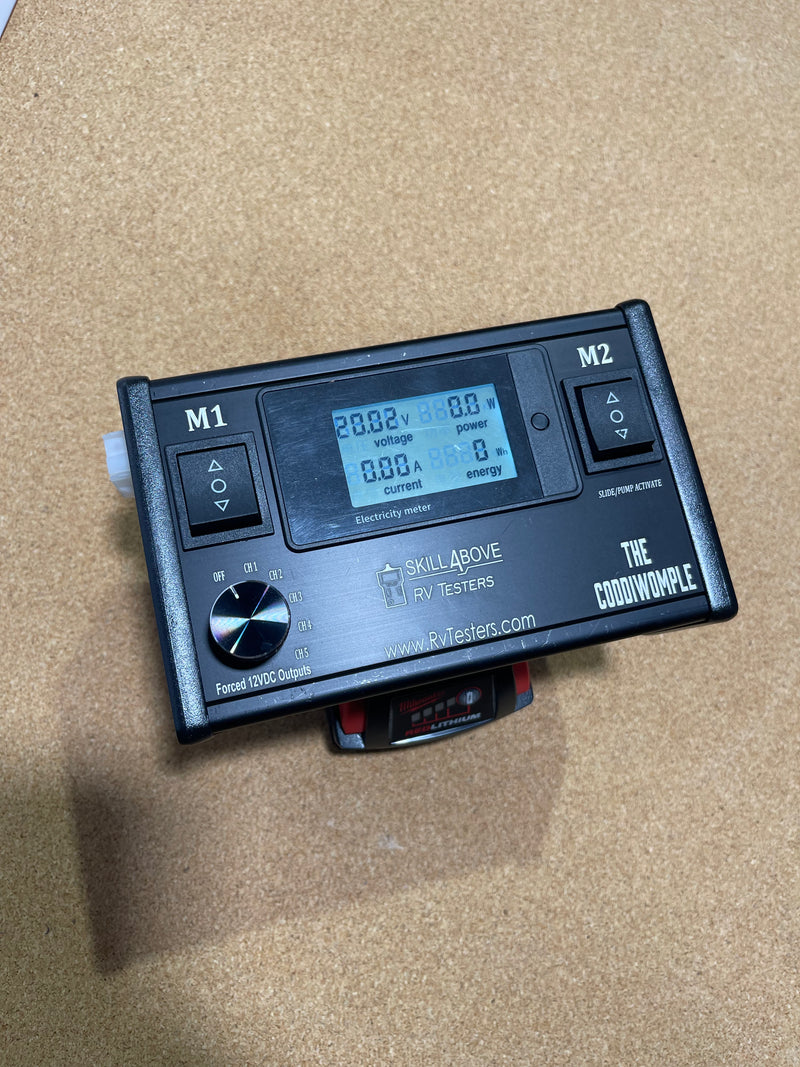

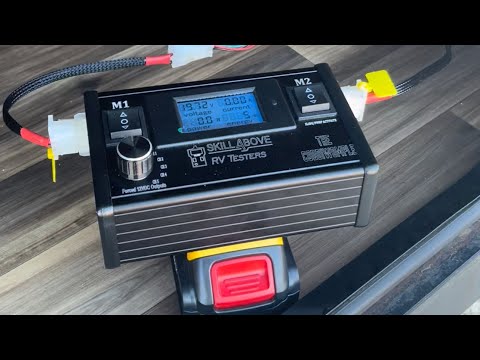

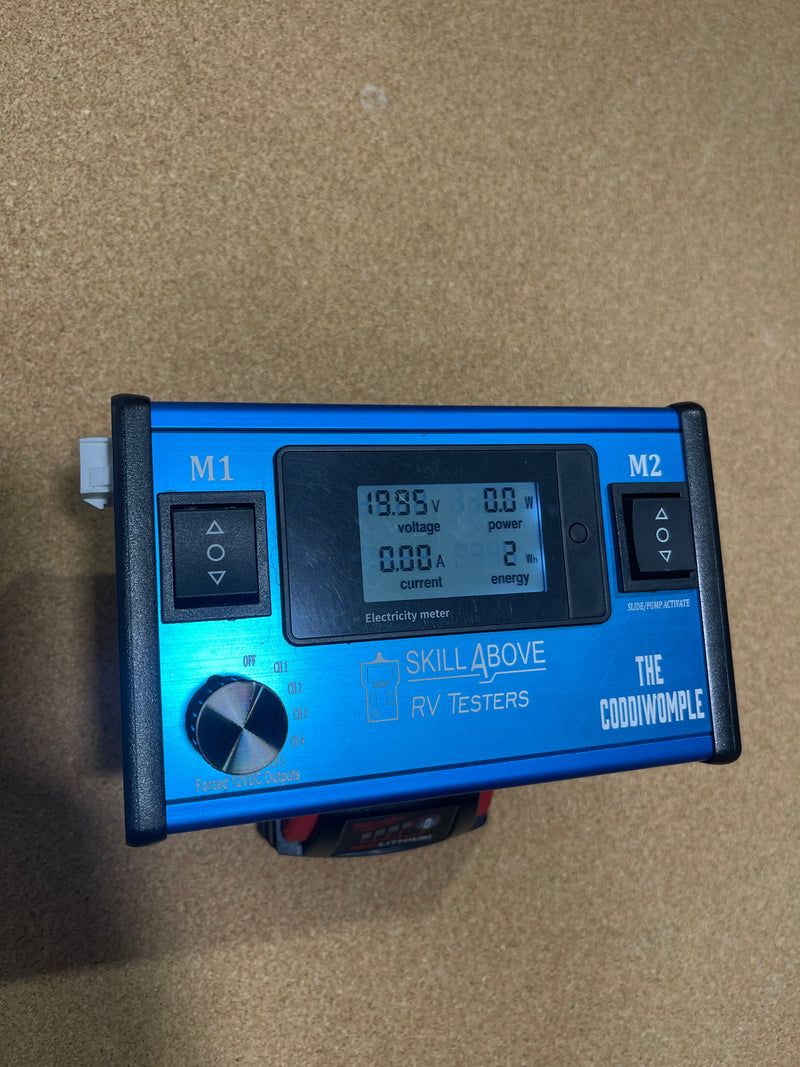

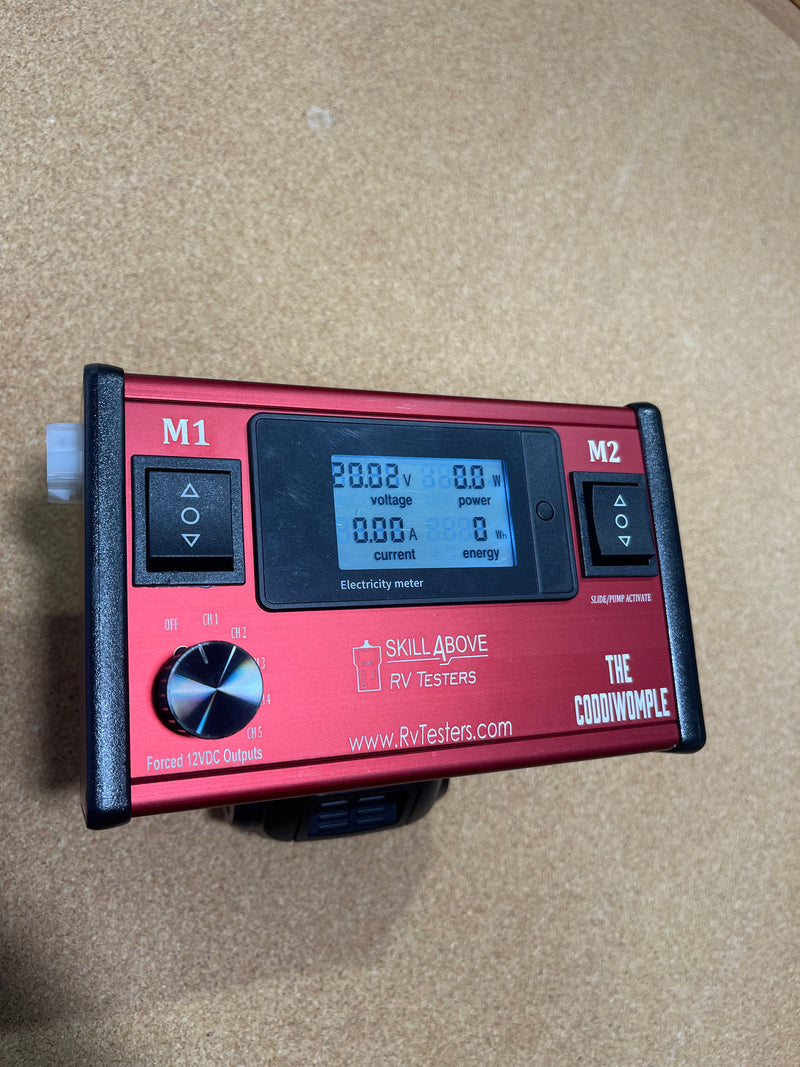

This Tester is designed to plug into various systems on most of todays Rv's to override and test particular components. When electrically overriding components the screen will display amp draw and voltage drop on Schwintek® motors, hydraulic cartridge valve coils, awnings, screw style actuators and many more items around the Rv.
will not work with DeWalt 20v powerstack batteries!

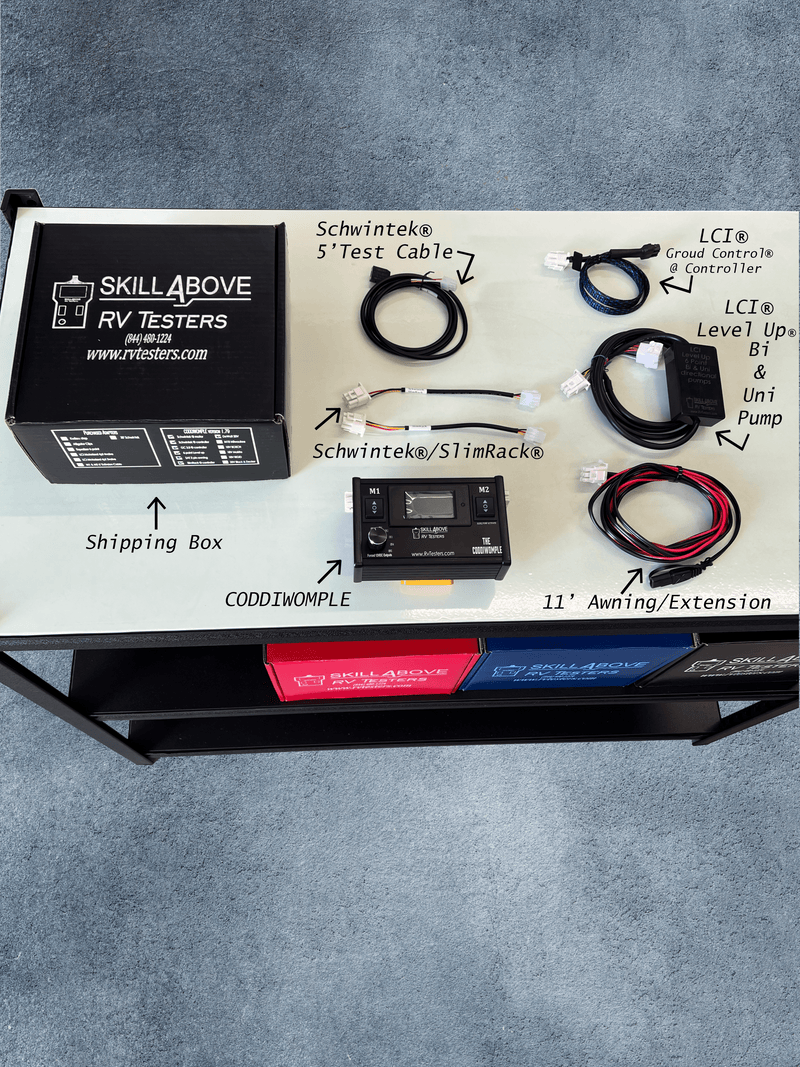

included adapters:
X1 Schwintek® 5’ direct to motor lead.
X2 Schwintek®/SlimRack® 6” at controller leads.
X1 ground control® 3.0 12” at controller lead.

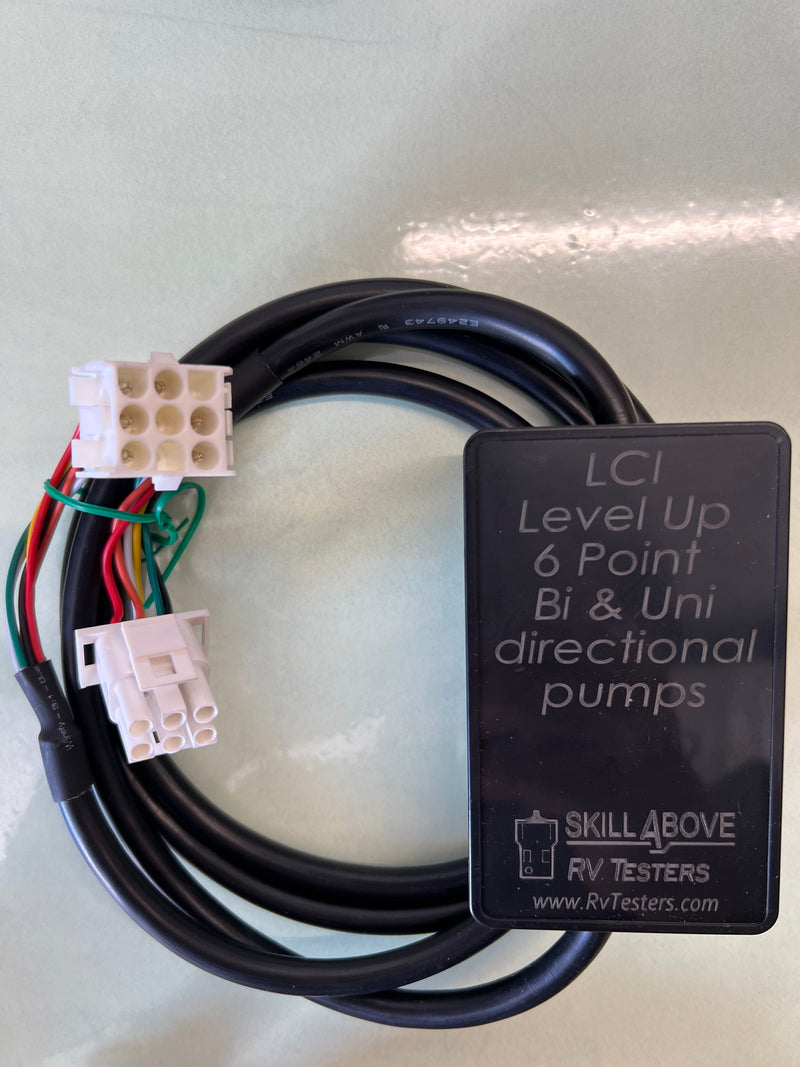

X1 6 point Level up® hydraulic 6’ lead.
X1 12’ awning/extension cable.
CODDIWOMPLE adapter cable: PDF Download
Note: Please select what drill battery style you currently use as this tester will NOT come with a battery. This tester uses your battery pack to operate the systems, We recommend 6.0ah or larger battery however it may work with smaller packs for shorter periods of time.
The CODDIWOMPLE is a DeWalt® based tool so for example if you order a CODDIWOMPLE for a Milwaukee® M18 battery it will come with a battery adapter to convert your M18 battery to a DeWalt® tool. The adapter is approximately 1” tall.
Link to the app:
SkillAbove Inc app
