Double Hall Sensor Board With plug

YouTube video showing board replacement procedure:

 Click here to watch video

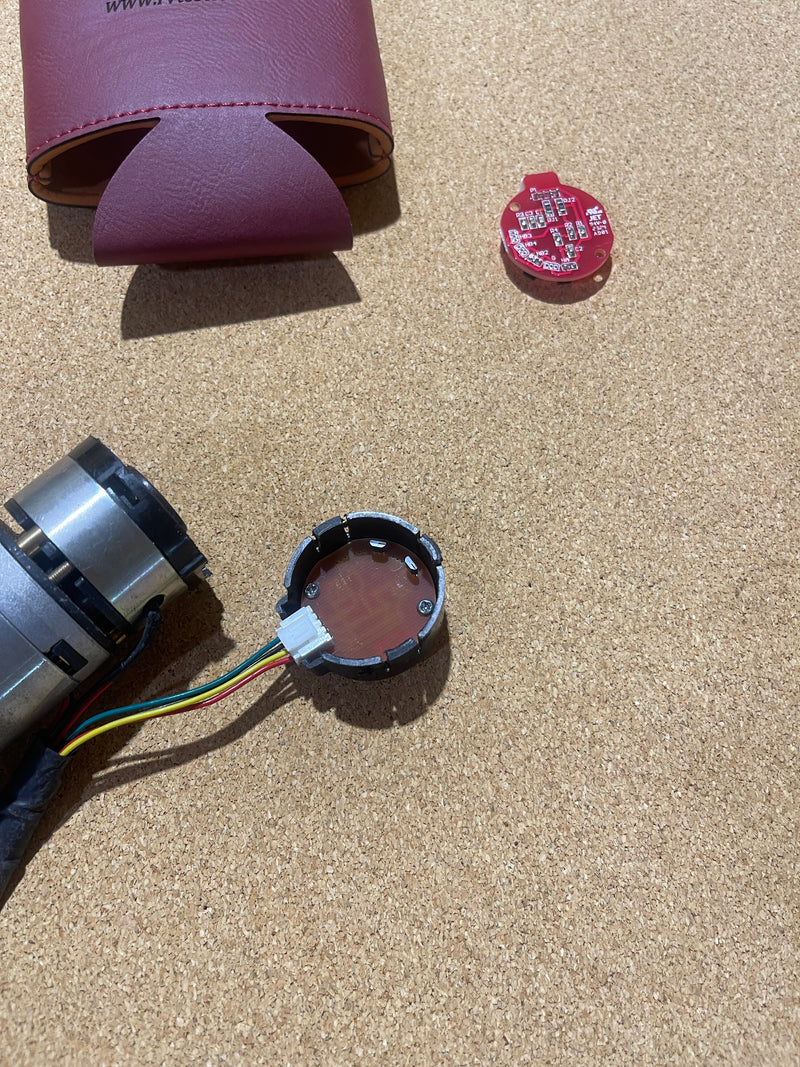

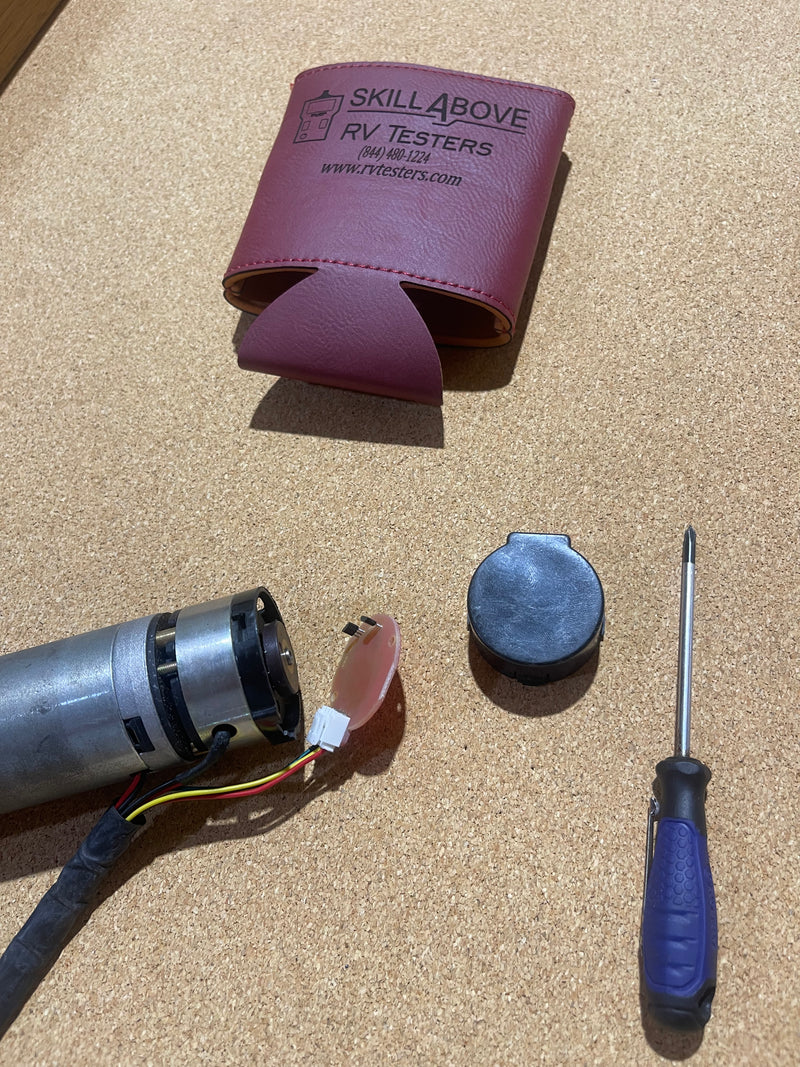

This replacement hall sensor board allows you to revive your old slimrack style motors without having to purchase a new motor assembly as long as the motor windings and gearbox and brake are in good working order. This task does not require any soldering and allows you to repair your failed motor in less than one minute.

Included in 2290 repair kit:

There are multiple buying options available so please be aware of your selection.

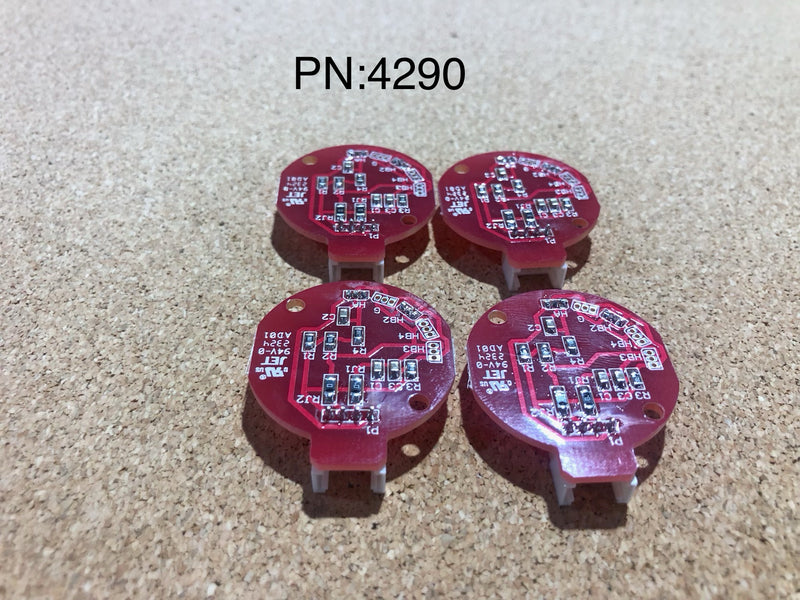

The DHSB PN: 2290 kit will contain 2 replacement hall sensor boards, The DHSB PN: 4290 kit will contain 4 replacement hall sensor boards.

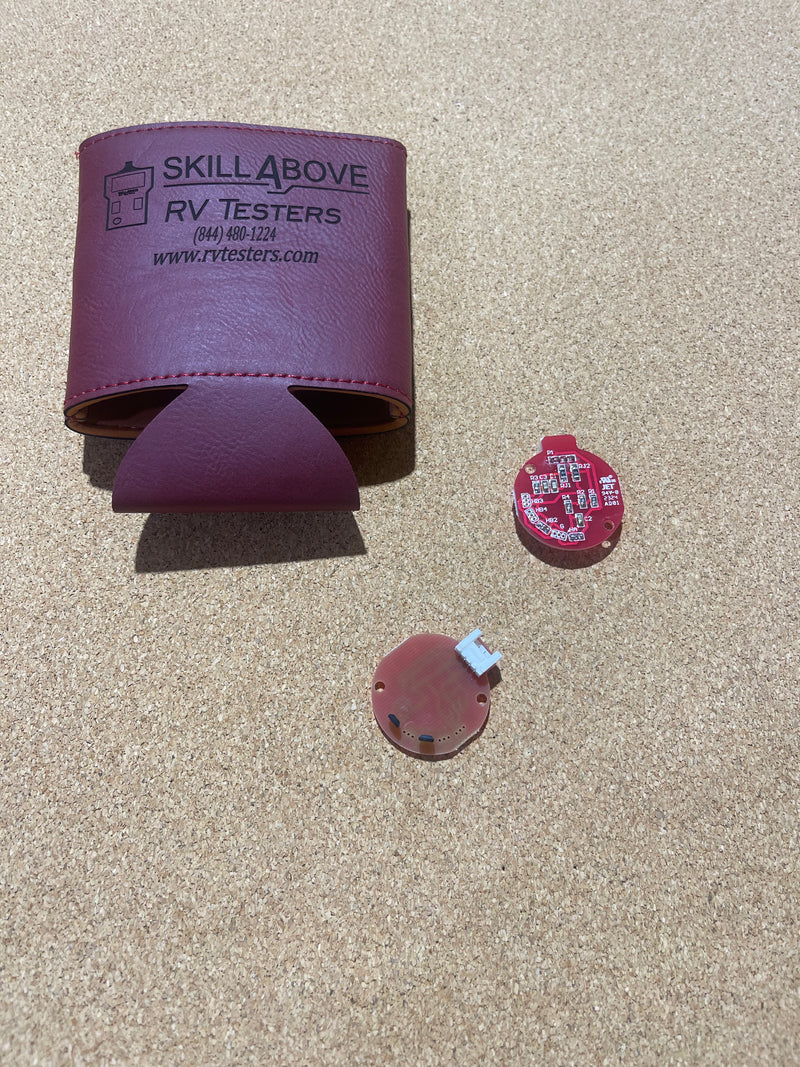

Both buying options will come packaged in a free SkillAbove drink Koozie.

Disclaimer:

All SkillAbove Inc. Parts are aftermarket parts. SkillAbove Inc. Parts are not Genuine OEM. Therefore, they may not be used in any application that requires the use of Genuine OEM Parts.

The following items are universal fit for many applications including schwintek and slimrack style motors used in various applications of RV’s as well as Arduino, CNC, Robotics and high-speed automation.

Double Hall encoder with leads PN:5966

This board is designed to work as a replacement for schwintek motors as well as any other 5mm double shaft such as 775, 795, 895 DC motors, 25GA370, GB37-555 and DCF9E7.

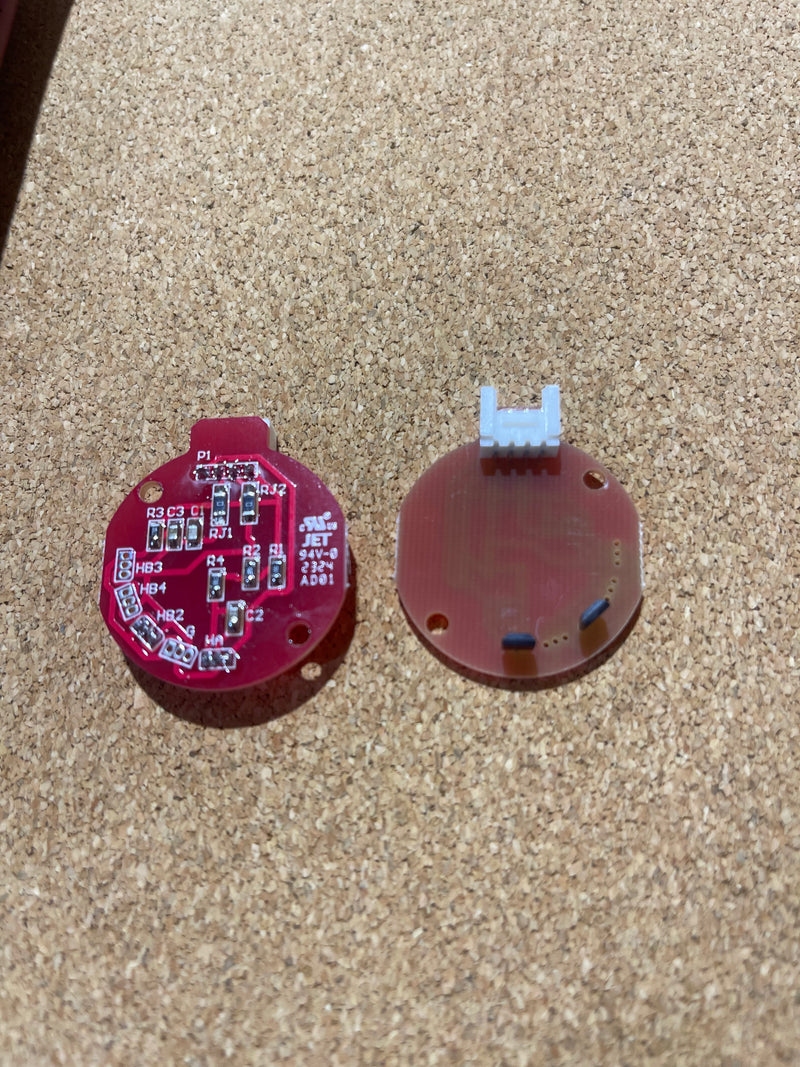

 Double Hall encoder with plug PN:2290 / PN:4290

This board is designed to work as a replacement for slimrack motors as well as CE238491, F1955B, C2VFG135, 18921346 and 9506 motors.
